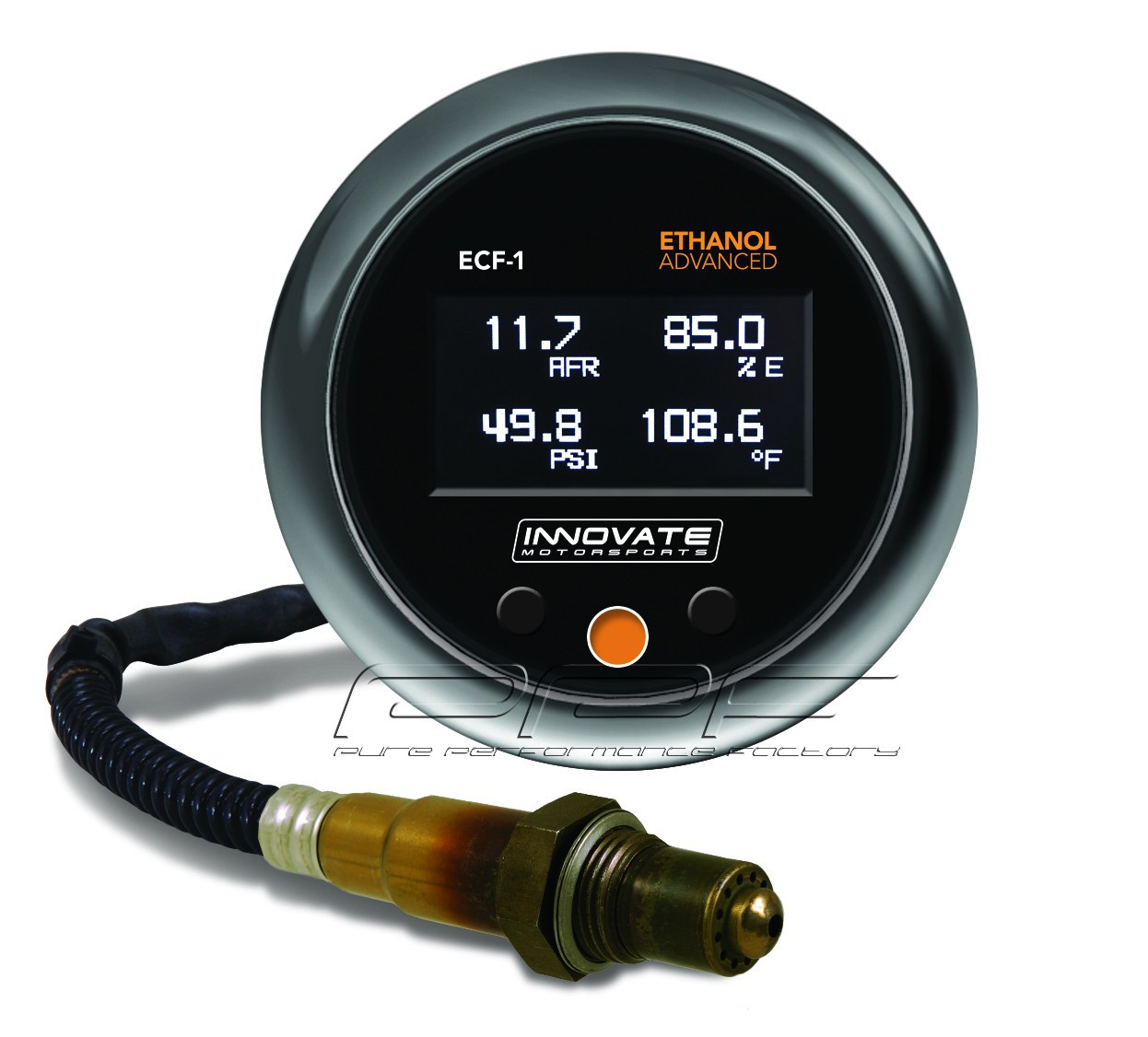

Innovate ECF-1 advanced

Key features:

• Four-in-one, ethanol content percentage, fuel temperature, fuel pressure, and wideband air/fuel ratio gauge
• OLED user configurable display (one, two, or four channel viewing modes)
  • Ethanol %, Fuel Pressure, Fuel Temperature, Air/Fuel ratio
  • °F or °C,  AFR or Lambda, PSI, kPa, or BAR
  • On screen error reporting for ethanol content sensor and wideband O2
  • Warning indicator LED for low fuel pressure (user programmable)
  • 0-145 PSI (10 Bar) fuel pressure sensor
  • 4-Configurable analog outputs for use with standalone and other programmable ECU?a?s as well as external data loggers

1. Ethanol Content: 0v = 0%, 5v = 100%
2. Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
3. Fuel Press: 0v = 0 PSI, 5v = 145.04 PSI (0-10 BAR)

Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda
