SKU: 5304

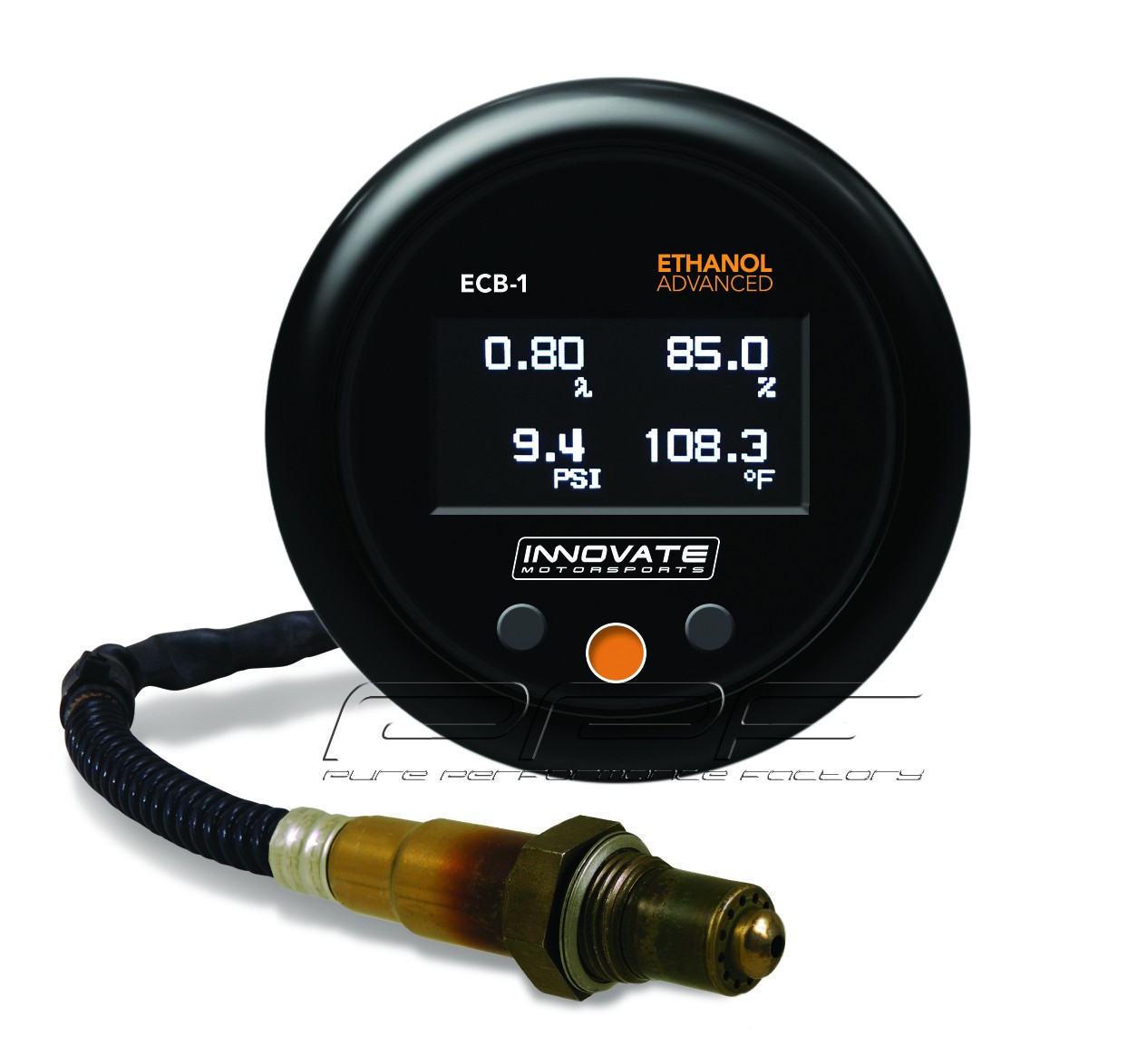

Innovate ECB-1 advanced

Key features:

  • Four-in-one, ethanol content percentage, fuel temperature, vacuum/boost pressure, and wideband air/fuel ratio gauge
  • *Boost Vision – a real-time calculated approximation of your ECU?a?s boost limit based on current ethanol content percentage
  • OLED user configurable display (one, two, or four channel viewing modes)
    • Ethanol %, Vacuum/Boost, Target Boost, Peak Boost, Fuel Temp, Air/Fuel ratio
    • °F or °C,  AFR or Lambda, inHG, PSI, kPa, or BAR
    • On screen error reporting for ethanol content sensor and wideband O2
    • Warning indicator LED when actual boost exceeds target boost (user programmable)
    • Peak hold function
    • 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
    • 3-Configurable analog outputs for use with standalone and other programmable ECU?a?s as well as external data loggers
  1. Ethanol Content: 0v = 0%, 5v = 100%
  2. Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
  3. Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)
  • Pressure readings can be adjusted for altitude differences

kr 6,269.00

Out of stock
