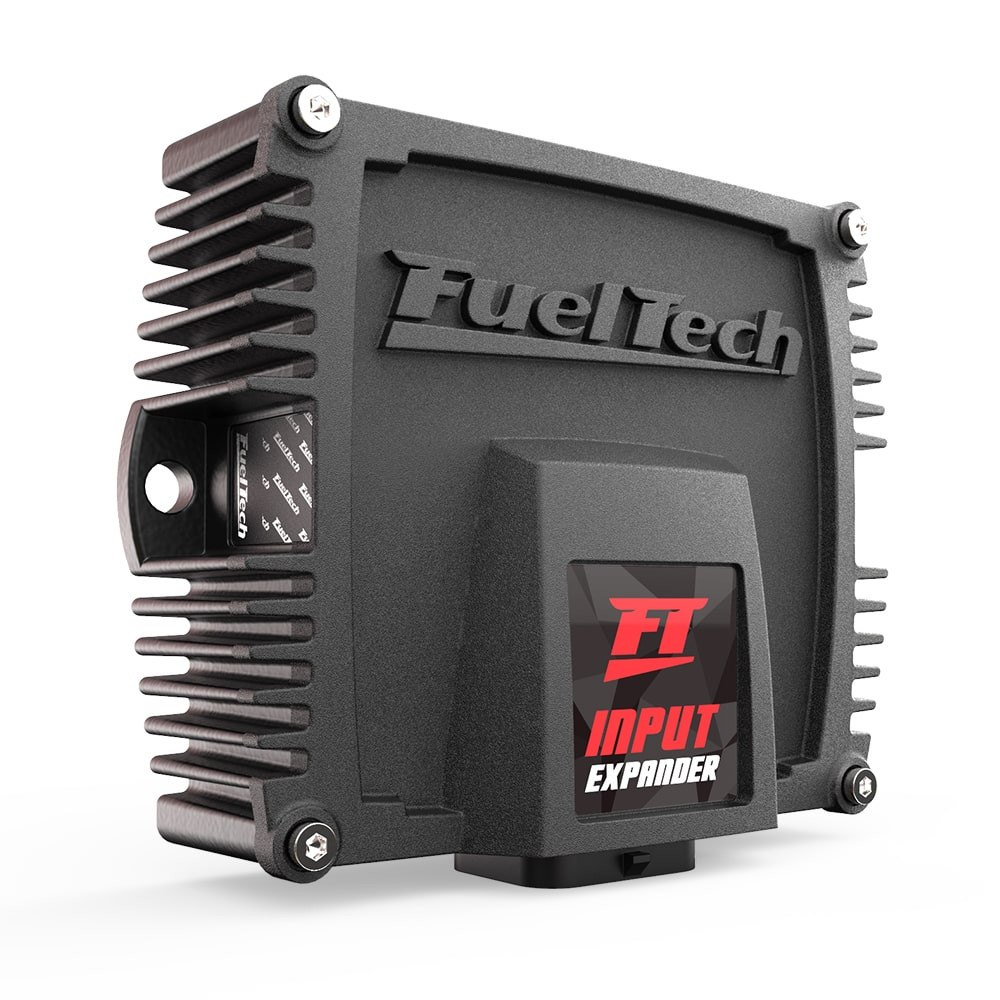

Fueltech FT input expander

Input Expander Module for PowerFT line (FT500 / FT500LITE / FT450 / FT550 / FT550LITE / FT600), with 20 inputs for sensor readings such as (pressure, flow, temperatures, position and activation of functions using keys or buttons), and 4 inputs RPM reading and speed. Full integration with FTManager software and communication via the CAN network. With a simple and fast configuration through an interface already known to all users of FuelTech products. 10ft harness included
Specifications:

• 20 analog inputs
• 4 differential inputs
• Communication via CAN Network
• 34-Way automotive connector

Dimensions:

• Module: 4.53 x 3.54 x 1.77 in
• Packaging: 8.78 x 6.38 x 2.36 in

Contents of packaging:

• 1 Input Expander Module
• 1 installation and operation manual
• 1 sticker
• 1 cushion kit

Warranty:

• Worldwide: 1 year
